Comprehensive Guide to Duct Rodder Types and Sizes

Duct rodders are indispensable tools in the cable laying and pipeline maintenance industries. Known for their flexibility and durability, duct rodders are essential for guiding, pulling, and installing cables or wires in conduits. This guide delves into the different types and sizes of duct rodders, helping professionals choose the best tool for their specific tasks. Whether you need a portable du



1. Introduction



Duct rodders are indispensable tools in the cable laying and pipeline maintenance industries. Known for their flexibility and durability, duct rodders are essential for guiding, pulling, and installing cables or wires in conduits. This guide delves into the different types and sizes of duct rodders, helping professionals choose the best tool for their specific tasks. Whether you need a portable duct rodder for smaller tasks or a wheeled one for heavy-duty applications, understanding the options is key.





2. Understanding Duct Rodders



Duct rodders are primarily made from fiberglass, offering an excellent balance of strength and flexibility. They are coated with a wear-resistant layer to ensure durability, even in challenging environments. Key components include:

• Fiberglass Core: Provides strength and flexibility.

• Protective Coating: Shields against abrasion and moisture.

• Accessories: Includes pulling heads, guiding wheels, and frame-mounted storage reels.

Duct rodders are used in tasks like:

• Installing electric cables in conduits.

• Cleaning or clearing obstructions in pipelines.

• Locating and tracing underground utilities.



3. Types of Duct Rodders

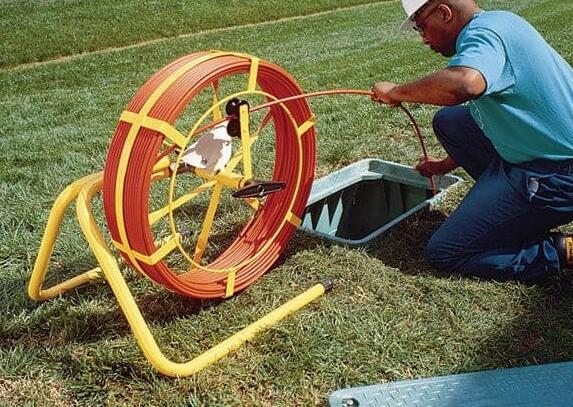

3.1 Portable Duct Rodder

• Sizes: 3mm, 4mm, 4.5mm, 5mm, 6mm, 7mm.

• Features: Lightweight and easy to transport.

• Applications: Suitable for small-scale operations such as short-distance cable laying in residential or office settings.

• Advantages:

  • Compact design for easy storage.

  • Ideal for quick, straightforward tasks.

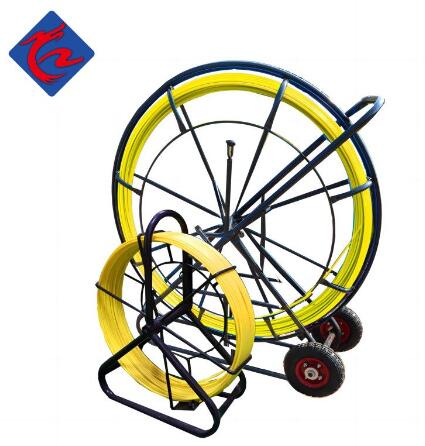

3.2 Wheeled Duct Rodder

• Sizes: 8mm to 18mm.

• Features: Mounted on a wheeled frame for enhanced mobility and stability.

• Applications: Commonly used for medium to large-scale cable installations and pipeline maintenance.

• Advantages:

  • High strength for pulling heavier cables.

  • Longer rods available for extensive conduit systems.





3.3 Traceable Duct Rodder

• Sizes: From 4.5mm to 18mm.

• Features: Incorporates copper trace wires for locating and tracing underground conduits without excavation.

• Applications: Utility mapping, pipe locating, and telecom projects.

• Advantages:

  • Eliminates the need for trenching.

  • Multiple copper wire options for enhanced signal strength.





4. Size Options for Duct Rodders



Diameter Classifications

Diameter	Usage	Typical Application
3mm-6mm	Light-duty tasks	Residential and small-scale conduit work
7mm-10mm	Medium-duty tasks	Commercial cable installations
11mm-18mm	Heavy-duty and long-distance projects	Industrial and underground operations



Length Classifications

Length	Usage	Typical Application
50m or less	Portable applications	Short conduits and tight spaces
50m-200m	Standard operations	General-purpose cable laying
200m or more	Specialized projects	Long pipelines or utility lines



5. How to Choose the Right Duct Rodder



Selecting the right duct rodder depends on several factors:

• Conduit Diameter: Ensure the rodder fits comfortably within the pipe.

• Work Distance: Longer distances require sturdier, thicker rods.

• Environmental Conditions: Opt for durable coatings for wet or abrasive environments.

• Budget: Balance cost with performance requirements.



6. Common Accessories and Enhancements



To maximize efficiency, consider the following accessories:

• Pulling Heads: Simplify cable attachment and pulling.

• Guiding Wheels: Facilitate smoother navigation through conduits.

• Frame and Reels: Allow easy transport and storage.

• Repair Kits: Extend the lifespan of your duct rodder with easy maintenance.



7. Maintenance Tips for Duct Rodders



Proper maintenance ensures longevity and optimal performance:

• Cleaning: Remove debris and clean the rod after each use.

• Storage: Keep the rod on a reel to prevent tangling or damage.

• Inspection: Regularly check for cracks or wear in the protective coating.

• Repairs: Replace damaged sections or accessories promptly.



8. Applications of Duct Rodders in Various Industries



Telecommunications

• Laying fiber optic and copper cables efficiently.

Construction

• Facilitating inspections of underground pipelines and conduits.

Municipal Services

• Clearing blockages and installing utility lines in sewer systems.

Energy

• Assisting in the installation of power transmission cables.



9. FAQs About Duct Rodder Types and Sizes



Q1: What type of duct rodder is best for long-distance operations?

• Wheeled duct rodders with diameters between 10mm and 18mm are ideal for long distances.

Q2: How do I determine the appropriate rod diameter for my task?

• Match the rod diameter to the conduit size and the task's complexity.

Q3: Can traceable duct rodders locate all types of underground utilities?

• They are effective for locating conduits with traceable materials but may require specialized equipment for non-metallic pipes.



10. Conclusion



Duct rodders are versatile tools that cater to diverse industries and tasks. Whether you need a portable option for quick jobs, a wheeled rodder for extensive projects, or a traceable rodder for precise utility mapping, choosing the right type and size can significantly enhance productivity. By understanding your specific needs and maintaining your equipment properly, you can ensure efficient and successful operations every time.
