SMT, or Surface Mount Technology, is the most popular technique and process in the electronics assembly industry. It involves mounting leadless or short-lead surface-mount components onto the surface of a printed circuit board (PCB) or other substrates and soldering them using methods such as reflow soldering or wave soldering. Typically, the electronic products we use are composed of PCBs combined with various electronic components such as capacitors and resistors, all designed according to specific circuit diagrams. Therefore, a wide variety of SMT processing techniques are required to manufacture different types of electronic devices.

The History of SMT Development

The origins of SMT technology can be traced back to the 1960s. At that time, as electronic devices became increasingly complex and integrated, traditional through-hole assembly methods could no longer meet production demands. To address this challenge, engineers began experimenting with directly mounting components onto printed circuit boards, leading to the emergence of SMT processing technology. When Steve Jobs first founded Apple in his garage, the initial batch of Apple computers was hand-soldered. While it was feasible to produce 100 units manually, scaling up to 10,000 units was impossible with hand soldering alone. As production volumes grew and product complexity increased, manual soldering proved insufficient. With continuous advancements in technology and automation, SMT has evolved into a high-precision, intelligent process, becoming a cornerstone of modern electronic manufacturing.

Why Adopt SMT?

1. Miniaturization
   SMT components are significantly smaller in size and volume compared to through-hole components, often reducing size by 60%-70%, or even up to 90%. Weight reduction ranges from 60% to 90%.
2. High Signal Transmission Rates
   SMT enables compact structures and high assembly density. When mounted on both sides of a PCB, assembly density can reach 5.5–20 solder joints per cm². Shorter connections result in lower signal delay, allowing high-speed signal transmission. Additionally, SMT offers greater resistance to vibration and shock, which is crucial for high-speed electronic operations.
3. Excellent High-Frequency Characteristics
   The absence or minimal length of component leads reduces circuit distribution parameters and minimizes RF interference.
4. Facilitates Automation
   SMT’s standardized and serialized components, combined with consistent soldering conditions, enable high levels of automation. This significantly reduces defects during soldering, improving reliability and production efficiency.
5. Lower Component Costs
   Except for a few types requiring extremely high-precision assembly or packaging, most SMT components cost less to package than their THT (Through-Hole Technology) counterparts. SMT components generally have lower market prices compared to THT components.
6. Streamlined Manufacturing Process
   SMT simplifies the production process of electronic products and reduces costs. Component leads don’t require reshaping, bending, or shortening for assembly on PCBs, shortening production time and boosting efficiency. The cost of manufacturing equivalent functional circuits is typically 30%-50% lower than with through-hole technology.

Key Elements of the SMT Process

1. Screen Printing
   Applies solder paste or adhesive to PCB pads to prepare for component soldering. Equipment: screen printer, located at the front of the SMT production line.
2. Dispensing
   Deposits adhesive at specific PCB locations to fix components. Equipment: dispenser, placed either at the front of the line or after inspection equipment.

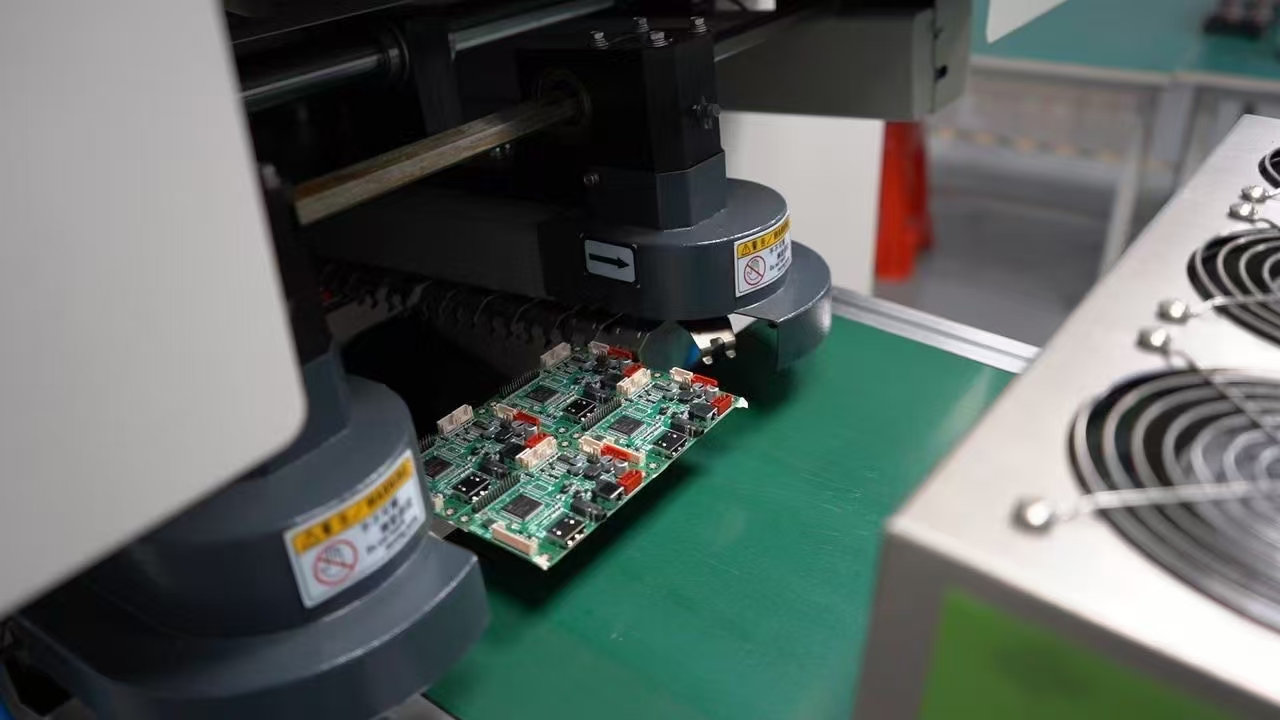

3. Placement
   Precisely mounts surface-mount components onto designated PCB locations. Equipment: placement machine, located after the screen printer.
4. Curing
   Melts the adhesive to securely bond components to the PCB. Equipment: curing oven, located after the placement machine.

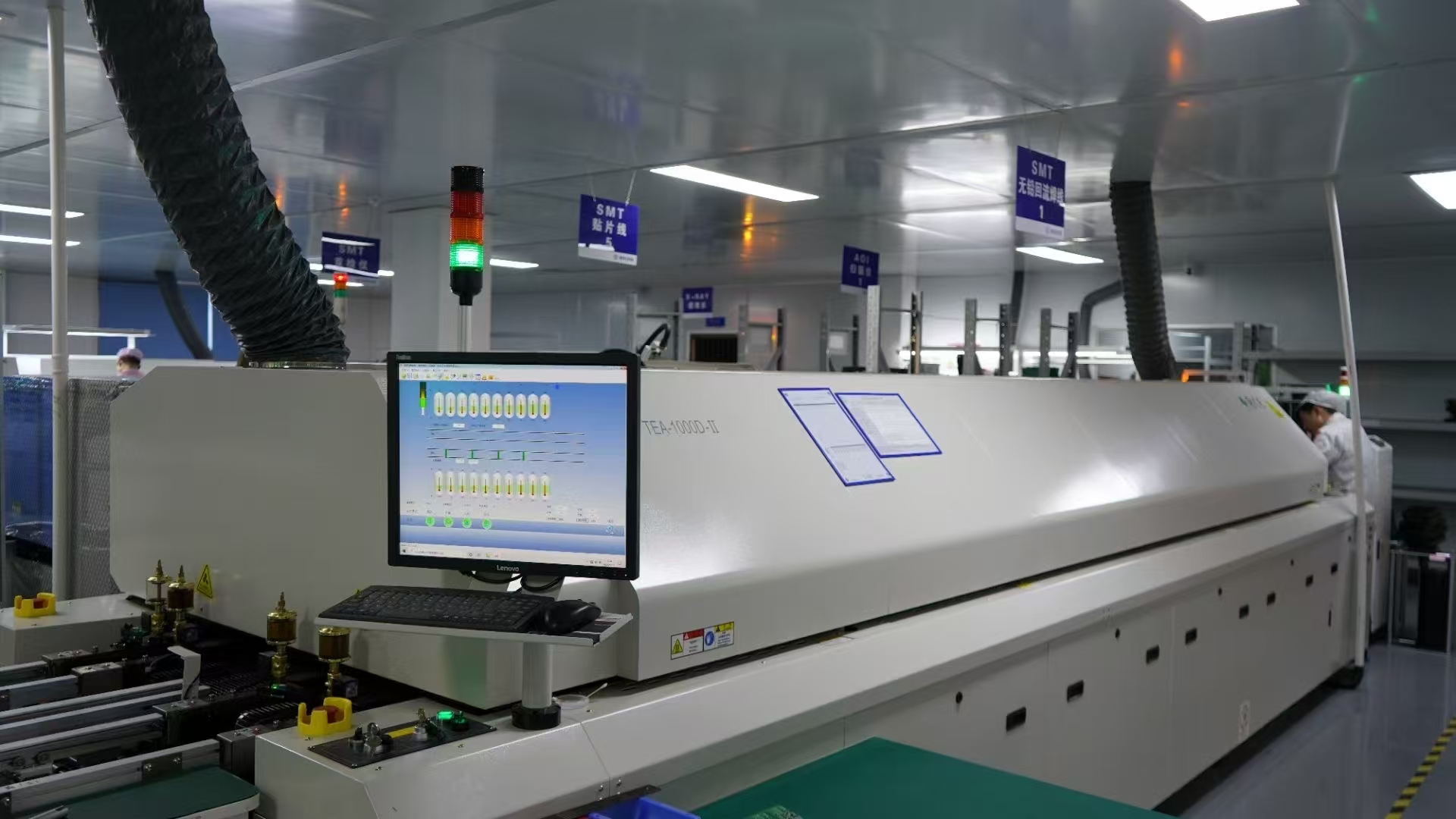

5. Reflow Soldering
   Melts solder paste to firmly connect components to the PCB. Equipment: reflow oven, located after the placement machine.
6. Cleaning
   Removes harmful solder residues, such as flux, from assembled PCBs. Equipment: cleaning machine, position flexible (online or offline).
7. Inspection
   Checks soldering and assembly quality of the PCB. Equipment includes magnifiers, microscopes, ICT (In-Circuit Testers), flying probe testers, AOI (Automated Optical Inspection), X-Ray inspection systems, and functional testers. Placement depends on inspection requirements.
8. Rework
   Repairs faults found during inspection. Tools: soldering irons, rework stations, etc., positioned anywhere along the production line as needed.

Applications of SMT Assembly Technology

SMT assembly technology is widely used in various fields, including computers, communications, consumer electronics, automotive electronics, and aerospace. Particularly in computer and communication-related electronic products, SMT has become the mainstream technology. With continuous technological advancements and evolving market demands, SMT assembly will continue to leverage its unique advantages, driving the sustained development of the electronics manufacturing industry.

SMT Advantages and Disadvantages
The advantages of SMT assembly technology include high assembly density, compact electronic product size and light weight, improved electrical performance, easier automated production, and cost efficiency. However, SMT assembly also has some challenges, such as quality control challenges, difficulty in repair or replacement, reliance on solder joints, difficulty in part identification, and increased sensitivity to heat and moisture.
