3d printing peek skull plate
TOPYOUTH3D has been involved in a large number of 3D printed examples of skull repair in patients with PEEK skull plates, resulting in significant therapeutic outcomes for patients.

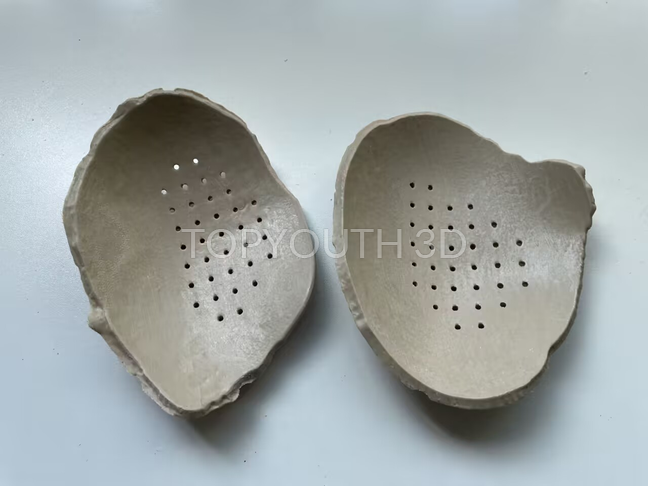

3D printed PEEK skull plates: a new breakthrough in skull repair
The skull is a vital bone structure in the human body, acting as a strong fortress and providing strong protection for the brain. In real life, unexpected factors can lead to a serious problem of skull loss.
Trauma is one of the most common causes of skull defects. The impact of traffic accidents, accidental falls from heights, violent blows, etc., can cause skull fractures. In some severe cases, the fracture is comminuted, leaving part of the skull unable to be preserved, resulting in a skull defect. In addition, when a tumor is present in the skull, the doctor may need to remove part of the skull in order to remove the tumor to create space for surgery. This process, although necessary to treat tumors, can also cause skull defects. Similarly, infections of the skull, such as osteomyelitis and fungal infections, if not effectively controlled, may erode the skull, resulting in the destruction of skull tissue and the formation of defects.
The damage caused by skull defects is significant. From a physiological point of view, the loss of the skull destroys the integrity and stability of the cranial cavity, so that the brain loses its due protective barrier. Not only does this increase the risk of external damage to the brain, but even a minor collision can cause serious damage to brain tissue. Skull defects can also affect the normal physiological environment in the skull, resulting in abnormal cerebrospinal fluid circulation, causing local blood circulation disorders, and then causing headache, dizziness, nausea, vomiting and other uncomfortable symptoms. Long-term skull defects may also lead to serious complications such as brain atrophy and epilepsy, causing lasting damage to the patient's physical health.
At the psychological level, skull defects often have a significant impact on the appearance of patients, leading to negative emotions such as low self-esteem, anxiety, and depression. These negative emotions not only affect the mental health of patients, but may also further interfere with their daily life and social activities, reducing their quality of life.
In the face of the serious problem of skull defects, the selection of skull repair materials is particularly crucial. Looking back on the development of medicine, cranial repair materials have undergone a long evolution, and each change embodies the wisdom and efforts of medical experts, bringing more hope to patients.
In the early days, plexiglass became one of the skull repair materials due to its hard texture and light weight. However, it is not very effective in shaping, and it is often difficult to achieve a perfect fit when faced with complex skull defect shapes. Plexiglass is less impact-resistant and does not provide adequate safety for the brain. When impacted by an external force, plexiglass may shatter, causing secondary damage to the brain. Over time, bone cement began to be used in the field of cranial repair. Bone cement performs well in terms of histocompatibility and is easy to shape, which can meet the needs of surgery to a certain extent. It is also less impact-resistant, and in everyday life, patients may need to undergo surgery again due to some minor bumps that cause damage to the repair site.
Later, the emergence of titanium alloy mesh materials attracted widespread attention in the field of skull repair. Titanium alloy has good biocompatibility and mechanical strength, and can adapt well to the human environment. Through computer shaping, the titanium alloy mesh can be made more accurately, which improves the effect of skull repair to a certain extent. Titanium alloy mesh also has some shortcomings that cannot be ignored. It has a relatively heavy texture, and patients may feel a significant pressure on their head after surgery, affecting their quality of life. The titanium alloy mesh has strong thermal conductivity, which makes the patient's head have a significant feeling of cold and heat when the outside temperature changes, and may even cause discomfort due to temperature stimulation. When patients need to undergo some imaging tests, such as MRI, the titanium alloy mesh will produce metal artifacts, which will interfere with the examination results and affect the doctor's accurate judgment of the patient's condition. In recent years, polyetheretherketone (PEEK) materials have emerged in the field of cranial repair with their excellent performance and become the new favorite of cranial repair materials.
3D printing technology is an outstanding representative of modern technology, and it plays a key role in the production of PEEK skull plates. Before surgery to repair the skull, doctors perform a high-precision CT scan of the head. This scan data is like a detailed architectural blueprint, providing an accurate foundation for subsequent 3D printing. Professional technicians import these CT data into advanced 3D modeling software, and through complex and accurate algorithms, a 3D model of the patient's skull defect is constructed. The model not only clearly shows the shape, size, and location of the skull defect, but also accurately reproduces details such as the physiological structure curvature of the skull.
Based on this 3D model, the 3D printing equipment began to work. It is layered in a way that builds the PEEK material into a skull plate bit by bit to the precise requirements of the model. This customized approach ensures that each 3D-printed PEEK skull plate fits perfectly to the patient's skull defect, which not only improves the success rate of the surgery, but also reduces the occurrence of postoperative complications, laying a solid foundation for the patient's recovery.
Superior properties of PEEK material
PEEK, or polyetheretherketone, is a high-performance specialty engineering plastic that has shown many remarkable properties in the field of skull repair. It is lightweight, with a density of only 1.3g/cm³ of pure PEEK sheets, which means that compared to traditional materials such as titanium alloy mesh, the burden on the patient's head after surgery is significantly reduced, which greatly improves the comfort of life. PEEK material also has excellent strength in reducing weight. Its yield strength is usually between 120 - 150MPa, which can provide a reliable protective barrier for the brain to effectively resist external impact and reduce the risk of re-injury to the brain.
PEEK material is very biocompatible. After rigorous biocompatibility testing, the results show that it is non-toxic, non-mutagenic and carcinogenic to human cells, and does not cause allergic reactions. When PEEK skull plates are implanted into the human body, they can live in harmony with the surrounding tissues, promote tissue growth and healing, and reduce the probability of rejection. This allows the patient's body to better adapt to the repair material during the post-operative recovery process, reducing the risk of surgical failure due to physical rejection.
PEEK material does not conduct electricity or heat, which makes it unique in the complex physiological environment of the human body. There is no adverse effect on brain tissue due to external electromagnetic interference or temperature changes. When performing imaging tests such as magnetic resonance imaging (MRI) and CT, PEEK materials do not produce metal artifacts like metallic materials, which can interfere with the results. Doctors can clearly and accurately observe the patient's intracranial situation, which provides a reliable basis for subsequent diagnosis and treatment.

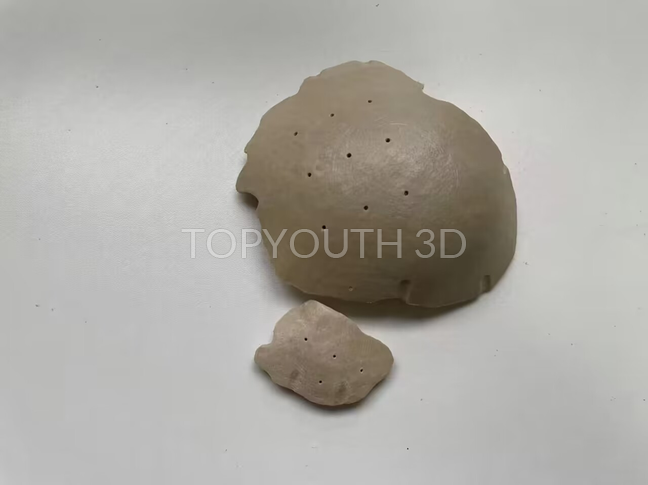

3D printed PEEK skull plates have been used with numerous success stories in clinical practice, bringing significant therapeutic results to patients. TOPYOUTH3D has been involved in a large number of patient skull repairs, and these real-world examples demonstrate the effectiveness of 3D printed PEEK skull plates in skull repair procedures. It can not only accurately repair skull defects and restore the appearance of patients, but also effectively improve the physical discomfort symptoms of patients, improve the quality of life of patients, and bring new hope to patients.
3D printed PEEK skull plates have shown great promise in the field of cranial restoration. With the continuous advancement of technology, the accuracy and efficiency of 3D printing technology will continue to improve. Future 3D printing equipment may be able to print more complex PEEK skull plates faster and with greater accuracy, further reducing the preparation time before surgery and giving patients more time to be treated.
As an innovation in the field of skull repair, 3D printed PEEK skull plates bring new hope to patients with skull defects with their unique advantages and remarkable efficacy. It is not only the embodiment of the progress of medical technology, but also the deep integration of science and technology and medical treatment. We have reason to believe that in the future, with the continuous improvement and development of related technologies, 3D printed PEEK skull plates will play a key role in the rehabilitation process of more patients and escort their health. Both patients and practitioners in the medical industry should pay close attention to the development of this innovative technology, jointly promote the continuous progress of skull repair technology, and contribute to the improvement of human health.
