Color-coated panels that can take a bath by themselves - self-cleaning color-coated panels

Many buildings are complex in shape and high in height, and the cost of manpower and material resources for cleaning is very high. We often see "Spider-Man" outside the building, and the safety of high-altitude operations is also a big problem.



Many buildings are complex in shape and high in height, and the cost of manpower and material resources for cleaning is very high. We often see "Spider-Man" outside the building, and the safety of high-altitude operations is also a big problem.





Open Baidu App to see more pictures. Now that the haze is so serious and the air quality is low, the surface of building materials is more susceptible to pollution. So is there such a material that can achieve self-cleaning? Or reduce the number of manual cleaning times?



There is such a special variety in color coating, the color coated board that will wash itself-self-cleaning color coated board.

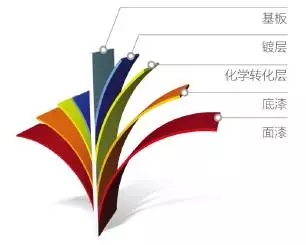

Self-cleaning color coated board structure





Self-cleaning color coated board is also composed of substrate, coating, chemical conversion layer, primer and topcoat.

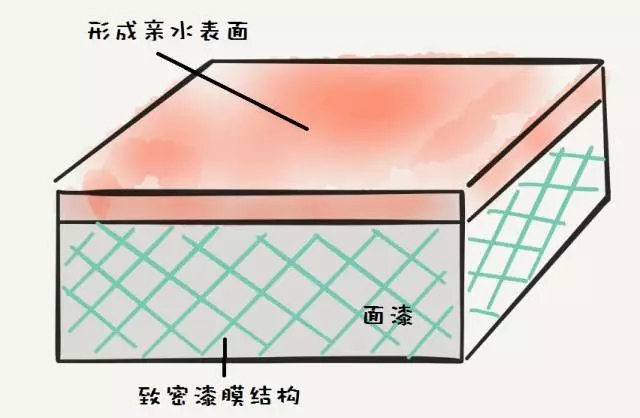

Self-cleaning principle



The surface of the color coated board is enriched with hydrophilic additives, and a dense paint film structure is formed on the topcoat to prevent pollution.



Let's compare the difference between ordinary color boards and self-cleaning color boards.



Anti-fouling comparison:

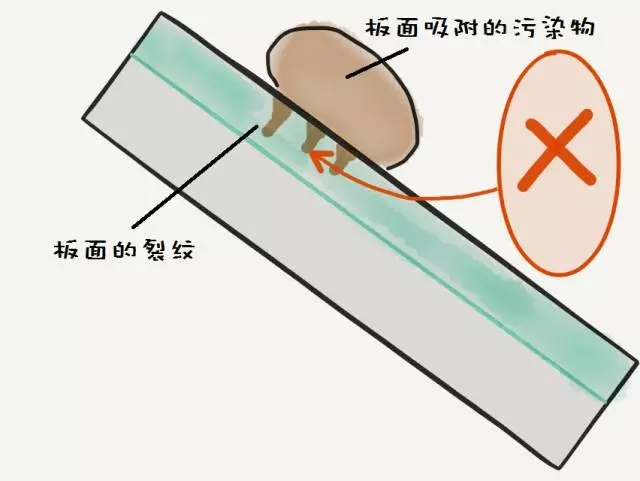

①Ordinary color board





The surface pollutants of ordinary color boards are easy to penetrate from the small cracks on the surface and cannot be removed by conventional cleaning methods.



②Self-cleaning color board





The surface of the self-cleaning color board has a layer of cross-linked dense paint film, which can effectively resist the penetration of pollutants into the paint film and protect the color board at the same time.



Hydrophilic performance

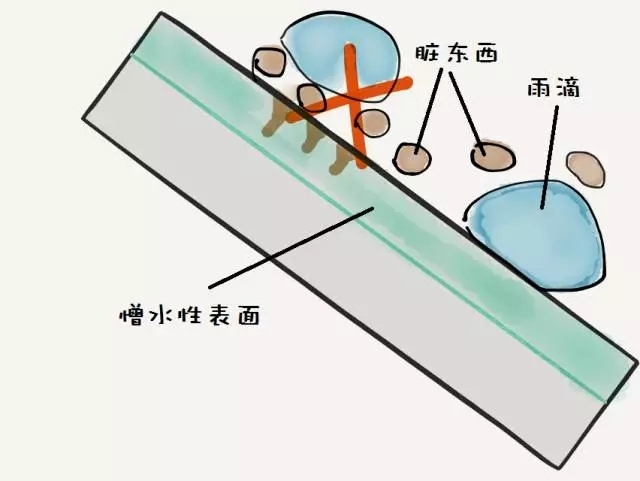

① Ordinary color plate





Because ordinary color plate has a hydrophobic surface, when rainwater washes, there is no way to wash away the dirt attached to the surface of the color plate.

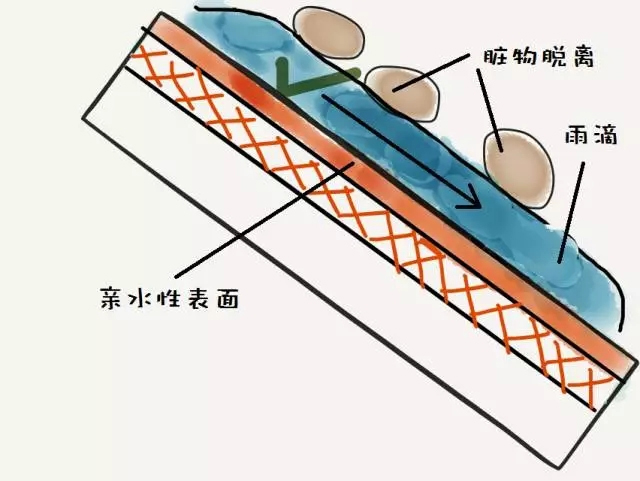

② Self-cleaning color plate

​



Self-cleaning color plate has an excellent hydrophilic surface, ensuring that rainwater fully spreads and washes away surface pollutants.



Features



1. Excellent decorative performance



2. Special topcoat design to achieve self-cleaning function



3. Customized according to different environments



4. Various medium and high strength substrates + different coating combinations
