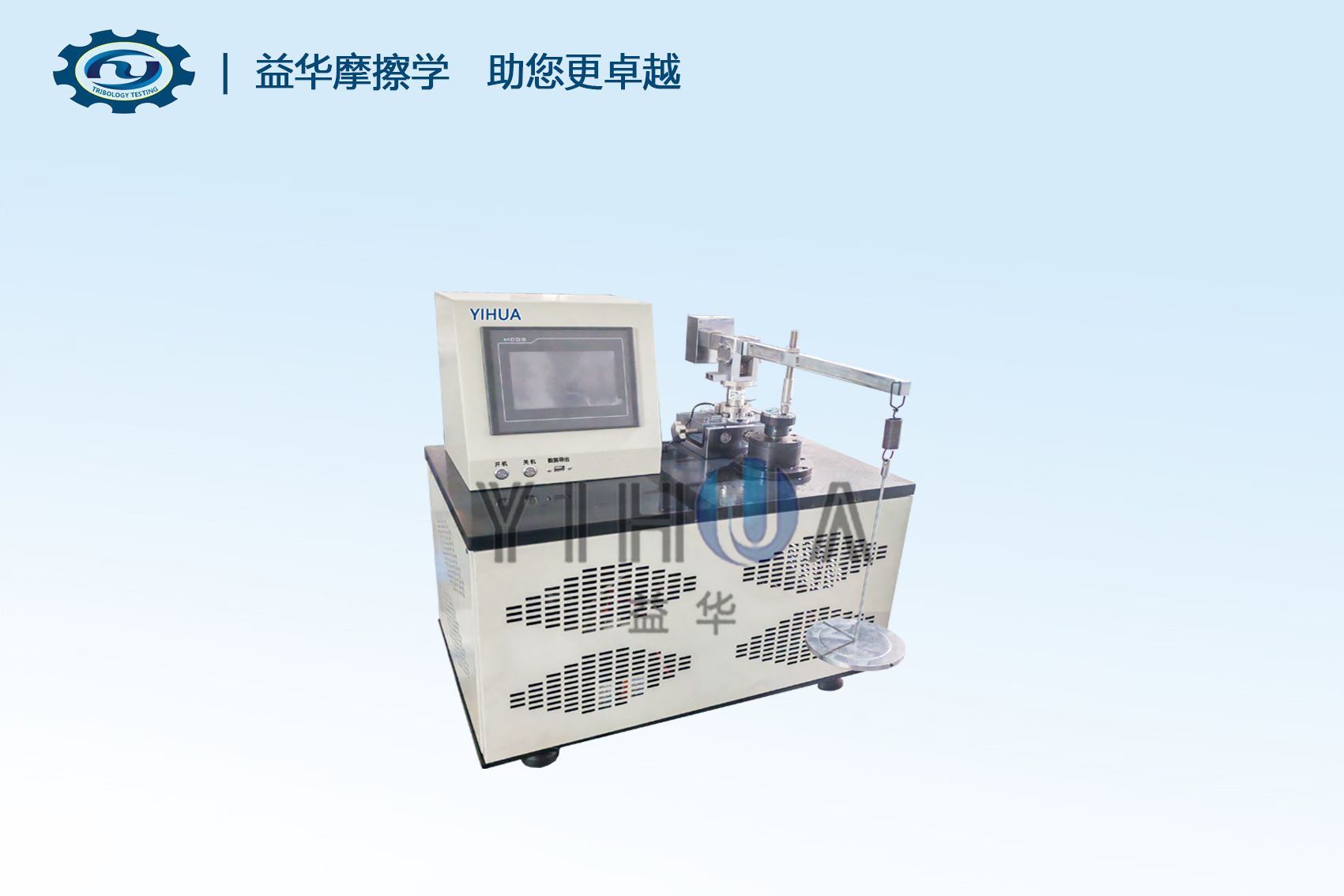

The preferred choice for material friction testing machines——Pin-on-Disk Friction and Wear Testing Machine

The small pin disc friction and wear testing machine has a compact structure, is easy to use, compact and precise, and the key is its high cost-effectiveness. It is the first choice for material friction testing machines.

The small pin disc friction and wear testing machine has a compact structure, is easy to use, compact and precise, and the key is its high cost-effectiveness. It is the first choice for material friction testing machines. Welcome interested friends to call for more information.

1、 Main purpose

This machine is mainly used to evaluate the friction and wear performance of various new materials such as metals, coatings, engineering plastics, ceramics, and powder metallurgy at room temperature. This machine can conduct pin disc or ball disc tests in the form of sliding friction. This testing machine has friction pair expansion space and can customize other forms of friction pairs according to needs.

2、 Applicable standards

ASTM G99-23  Standard Test Method for Wear and Friction Testing with a Pin-on-Disk or Ball-on-Disk Apparatus

3、 Main technical parameters

1. Test force loading range: (0.1-10)N、(10-200)N

2. Maximum friction torque: 4Nm

3. Spindle speed range: 5-2000r/min

4. Test media: dry friction, oil lubrication and other media

5. Friction diameter range: 10-35mm adjustable

6. Test force loading: Weight loading

7. Testing machine control: touch screen control
