The Differences between Hybrid Inverter Solar Systems and Off-grid Solar Systems



Solar energy systems have witnessed significant development in recent years, with hybrid inverter solar systems and off-grid solar systems being two popular types. Here are the detailed differences between them:



Grid Connection

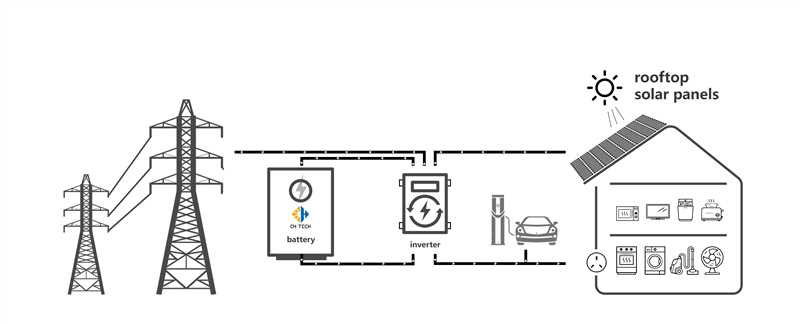

- Hybrid Inverter Solar System: It is connected to the utility grid, enabling bidirectional power flow. It can feed surplus electricity generated by solar panels into the grid and draw power from the grid when solar power and battery energy are insufficient.

- Off-grid Solar System: It operates independently without any connection to the utility grid, relying solely on solar panels and energy storage batteries for power supply.

 Energy Storage and Utilization

- Hybrid Inverter Solar System: It stores excess solar energy in batteries and uses grid electricity as a backup. When the grid is out of power, the battery can supply power. It can also intelligently switch power sources based on electricity prices.

- Off-grid Solar System: It mainly depends on batteries to store the electricity generated by solar panels. Once the battery power is exhausted and there is no solar power input, the power supply to the load may be affected.



 Equipment Complexity and Cost

- Hybrid Inverter Solar System: It has a relatively complex structure and control system, integrating grid connection and energy storage functions. It requires equipment such as grid connection devices and bidirectional inverters, resulting in a relatively high initial investment cost.

- Off-grid Solar System: It is relatively simple, mainly composed of solar panels, batteries, off-grid inverters, etc. There is no need for grid connection equipment, so the equipment cost is relatively low.



 Application Scenarios

- Hybrid Inverter Solar System

    - Residential Use: Ideal for homeowners who want to reduce their reliance on the grid and lower energy bills. It can power household appliances during the day with solar energy, store excess power in batteries, and draw from the grid at night or when solar power is insufficient.

    - Commercial Applications: Suitable for businesses aiming to reduce energy costs and increase sustainability, such as office buildings, shops, and small factories. It can meet the power needs during working hours and sell surplus electricity to the grid.

    - Rural Areas: Useful in rural regions where grid power may be unreliable or have high electricity prices. It provides a stable power supply and can also be connected to the grid when available.

    - Emergency Backup Power: Functions as an excellent backup power source during emergencies like power outages or natural disasters. It ensures the continuous operation of essential equipment and facilities.

    - Remote Locations with Grid Access: In remote areas where there is grid access but the power supply is not always stable, hybrid inverter solar systems can provide additional power support and improve energy reliability.

- Off-grid Solar System: It is suitable for remote areas, islands, nomadic areas and other places where there is no grid access or the power supply is unstable, often used in family, small commercial projects or occasions that require independent power supply.

 System Efficiency

- Hybrid Inverter Solar System: It is generally more efficient, making full use of solar energy, grid electricity and battery energy, and intelligently switching between different power sources to optimize energy utilization. The efficiency can reach 90% - 98% under full load.

- Off-grid Solar System: The overall efficiency is affected by factors such as solar panel efficiency, battery charge and discharge efficiency, and inverter conversion efficiency, usually at 80% - 87%.



 Maintenance and Monitoring

- Hybrid Inverter Solar System: It usually has a centralized monitoring system, allowing users to monitor the performance of solar panels, batteries and grid connection through one platform.

- Off-grid Solar System: The monitoring is relatively simple, mainly focusing on the status of solar panels, batteries and inverters. Users need to check and maintain equipment regularly to ensure its normal operation.



 Safety and Reliability

- Hybrid Inverter Solar System: It has strict grid connection protection mechanisms to ensure the safety of grid connection and prevent reverse power transmission and other problems.

- Off-grid Solar System: It focuses on the safety and reliability of the independent power supply system, such as the overcharge and over-discharge protection of batteries and the stability of inverter operation.
