The Ultimate Guide to Bridge Formwork Systems

Bridge formwork systems play a pivotal role in the construction of bridges, providing the necessary framework for casting concrete. These systems ensure precision, safety, and efficiency during the building process.



Bridge formwork systems play a pivotal role in the construction of bridges, providing the necessary framework for casting concrete. These systems ensure precision, safety, and efficiency during the building process. Whether you're constructing a simple pedestrian bridge or a complex multi-lane highway bridge, understanding the different types of bridge formwork systems, their components, and applications can help optimize your project. This comprehensive guide will walk you through everything you need to know about bridge formwork systems.



1. What Is a Bridge Formwork System?



A bridge formwork system is a temporary structure used to shape and support the poured concrete during the construction of bridge components, such as decks, piers, and abutments. The formwork must be strong enough to withstand the pressure of wet concrete, as well as the forces applied during construction and curing. Once the concrete has cured and gained sufficient strength, the formwork is removed, leaving behind the hardened bridge structure.

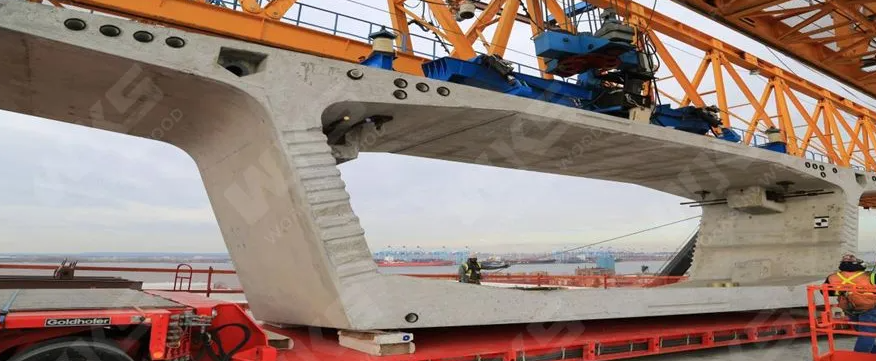

Bridge Formwork System

Key Functions of Bridge Formwork Systems:



• Shaping: Creating the desired shape for the concrete structure.
• Support: Providing temporary support until the concrete gains enough strength to stand alone.
• Alignment: Ensuring that the components are correctly positioned during construction.
• Safety: Preventing collapse or misalignment during the pouring and curing process.



2. Types of Bridge Formwork Systems



There are several types of formwork systems used in bridge construction, each designed for specific applications and project requirements. The choice of system depends on factors such as the type of bridge, site conditions, and the materials being used. The most common types include:



2.1. Slab Formwork

Slab formwork is used for constructing horizontal bridge decks or slabs. This system involves a series of interconnected panels, beams, and supports that form the shape of the deck. It is commonly used for bridges with simple or continuous spans.



Advantages:

• Cost-effective for simple bridge designs.
• Efficient for constructing multiple decks or repetitive spans.
• Can be adjusted for varying slab thicknesses.



2.2. Cantilever Formwork

Cantilever formwork is used in the construction of large and complex bridges, especially those with long spans. This system allows for the gradual construction of bridge decks by adding sections progressively from one end of the bridge to the other, often without requiring scaffolding.



Advantages:

• Ideal for bridges with long spans and difficult access.
• Reduces the need for scaffolding, making it suitable for bridges over water or highways.
• Provides high precision and flexibility in formwork design.



2.3. Truss Formwork

Truss formwork uses a framework of triangular trusses to support the formwork panels. This system is often used for large, elevated bridges or in locations where a high degree of stability and support is needed.



Advantages:

• Provides strong support for large or complex bridge structures.
• Can be used for both horizontal and vertical components of the bridge.
• Offers flexibility in design and ease of assembly.



2.4. Moving Formwork (Straddle Formwork)

Moving formwork systems are used for constructing long bridge spans, particularly in precast or post-tensioned bridges. The formwork moves progressively along the bridge as sections of concrete are poured and cured.



Advantages:

• Perfect for long-span bridges with repetitive spans.
• Offers high precision and can significantly reduce construction time.
• Minimizes labor and material costs by reusing the same formwork system throughout the project.



3. Components of Bridge Formwork Systems



A complete bridge formwork system consists of several components that work together to shape, support, and align the concrete during the construction process. These include:



3.1. Form Panels

Form panels are the primary elements of the formwork system, providing the surface for the poured concrete to take its shape. They are typically made from steel, timber, or plywood, and they come in various sizes to accommodate different bridge components.



3.2. Support Structures

Support structures, such as props, shores, and brackets, hold the form panels in place and ensure that they maintain the correct position and alignment during the pouring process. These supports must be strong enough to handle the weight of the concrete and any additional loads applied during construction.



3.3. Beams and Girders

Beams and girders are used to create the framework of the bridge deck, connecting the form panels and support structures. They are typically made from steel or aluminum and are designed to handle the tension and compression forces during construction.



3.4. Release Agents

Release agents are used to coat the form panels and prevent the concrete from sticking to the formwork. These agents ensure that the formwork can be removed easily once the concrete has cured, leaving behind a smooth, finished surface.



4. Factors to Consider When Choosing a Bridge Formwork System



When selecting a formwork system for your bridge construction project, it's important to consider several factors that can impact both the cost and efficiency of the project. These factors include:



4.1. Project Size and Complexity

The size and complexity of the bridge will play a major role in determining the type of formwork system required. For small, simple bridges, a basic slab or truss formwork system may be sufficient. However, for larger, more complex projects, moving or cantilever formwork may be necessary.

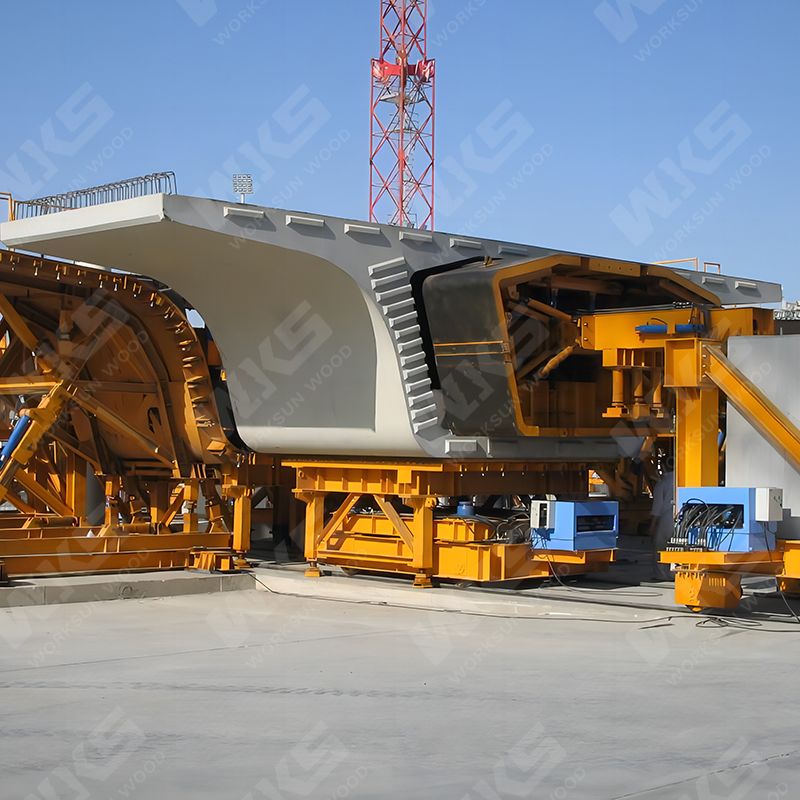

Bridge Formwork System

4.2. Budget and Cost

Formwork systems can vary widely in cost, so it's essential to choose one that fits within your project budget. While some systems may have a higher upfront cost, they can save money in the long run by reducing labor time, material usage, and reusability.



4.3. Site Conditions

The location and accessibility of the bridge site can significantly impact your formwork choice. For bridges located over water, in remote areas, or in locations with difficult terrain, systems that minimize the need for scaffolding or complex support structures may be preferable.



4.4. Construction Timeframe

Some formwork systems are designed to speed up construction times, such as moving or cantilever formwork systems, which allow for continuous pouring and minimal downtime. If a tight construction schedule is a priority, choosing a system that can be set up and removed quickly is key.



5. Advantages of Using Bridge Formwork Systems



Implementing a robust bridge formwork system comes with several advantages that can benefit both the construction process and the finished bridge structure:



• Precision: Formwork ensures the correct shape and alignment of bridge components, leading to higher accuracy in the finished structure.
• Speed: Advanced formwork systems, especially moving formwork, can accelerate construction timelines by allowing for continuous work with fewer delays.
• Cost-Effectiveness: By minimizing labor and material costs and maximizing reusability, formwork systems can help reduce the overall cost of construction.
• Safety: A well-designed formwork system provides a safe environment for workers, preventing accidents and ensuring proper support during construction.



6. Conclusion



Bridge formwork systems are a crucial part of any bridge construction project, ensuring the safe and precise shaping of concrete while providing the necessary support during the curing process. Understanding the different types of formwork systems and their components will help you select the right system for your specific project, leading to a more efficient and cost-effective build. By carefully considering factors like project complexity, site conditions, and construction timeframes, you can choose the most appropriate formwork system to meet your needs and deliver a successful bridge project.



FAQs About Bridge Formwork Systems



1. What is the best formwork system for a large bridge project?

For large and complex bridge projects, moving formwork or cantilever formwork systems are ideal due to their ability to handle long spans and reduce the need for scaffolding.



2. Can form work systems be reused?

Yes, many formwork systems, especially steel and modular systems, can be reused across multiple projects, providing a cost-effective solution for long-term use.



3. How long does it take to set up a bridge formwork system?

The setup time for a formwork system varies depending on the complexity and type of system being used. Moving formwork systems tend to be faster to set up compared to traditional slab formwork systems.



4. Is formwork necessary for every type of bridge?

Yes, formwork is necessary for nearly all types of bridge construction to shape and support the concrete during the pouring and curing stages, ensuring the bridge meets safety and design specifications.
