Can a Hammer Break Toughened Glass

Curious if a simple hammer can break toughened glass? In our latest article, we dive into the remarkable properties of toughened glass, exploring its impressive impact resistance and real-life scenarios. Uncover the science behind its strength and discover whether common tools can challenge its durability. Don't miss these enlightening insights! Read more to find out!





A hammer can break toughened glass, but it requires specific methods and skills‌. Although toughened glass has greater strength and impact resistance, it can still be broken by a hammer under certain circumstances. Here are the specific reasons and how to do it:



The manufacturing principle of toughened glass‌:

Toughened glass forms compressive stress on the surface of the glass through physical or chemical methods, thereby improving its strength. This treatment allows the internal tension of the tempered glass to prevent the expansion of tiny cracks on the surface when it is acted upon by external forces, making it very strong under normal circumstances.



How to Break Toughened Glass with A Hammer‌:

To use a hammer to break toughened glass, you need to find the weak point on the glass. Usually, after the toughened glass self-explodes, there will be a butterfly-shaped explosion point and a small bubble. This small bubble is the cause of the toughened glass self-explosion. Therefore, using a hammer to hit the location of this small bubble can effectively break the tempered glass‌





Other Methods or Tools Which Can Break Toughened Glass Easily:

In addition to a hammer, there are other tools and methods you can use to break toughened glass easily. For example, using a flamethrower to heat a corner of the toughened glass and then quickly hitting the heated part with a hammer can also effectively break the toughened glass.

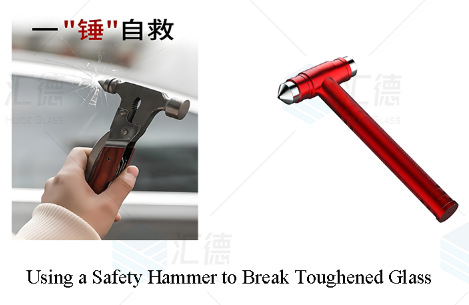

In addition, using professional tools such as window-breaking hammers or safety hammers is also a more effective method to break the toughened glass.







What is Toughened Glass:



Toughened glass, also known as tempered glass, is a specially treated glass designed to withstand higher levels of stress and impact compared to standard glass. The toughening process involves heating the glass to high temperatures and then rapidly cooling it. This thermal tempering alters the internal structure of the glass, enhancing its strength and making it a preferred choice for various applications in both residential and commercial settings.



Toughening Processing for Toughened Glass:



The process of toughening glass is a meticulous one, transforming ordinary glass into a highly durable material. To create toughened glass, raw glass sheets are first heated to a temperature range of approximately 600°C to 700°C (about 1112°F to 1292°F). After being subjected to this heat, the glass is quickly cooled using a process known as quenching. This rapid cooling creates a difference in temperature throughout the glass, resulting in high compressive stresses on its surface while maintaining tensile stress within. The resulting tension gives toughened glass its remarkable resistance to breaking.



Continuous Furnace to Heat and Cooling Toughened Glass:





6 Key Features and Benefits of Toughened Glass:



1. Enhanced Strength:

Toughened glass is five to six times stronger than regular glass. This strength makes it an ideal option for high-traffic areas, public spaces, and home and kitchen applications where safety is paramount.

2. Safety:

In the event of breakage, toughened glass shatters into small, blunt pieces instead of sharp shards, significantly reducing the risk of injury. This property makes it a safer choice for use in environments where people may be present, such as schools, hospitals, and domestic dwellings.

3. Thermal Resistance:

Toughened glass is not only stronger but also better equipped to handle temperature fluctuations. The intense heating and cooling process allows toughened glass to withstand sudden changes in temperature as it can tolerate temperatures up to around 250°C (482°F) without being affected.

4. Versatility:

Toughened glass is available in various thicknesses, colors, and finishes, making it suitable for countless applications. Its aesthetic appeal means it can be used in everything from windows and shower doors to glass railings and balustrades, even toughened glass is widely applied in home furniture, domestic appliances for safety consideration.

5. Energy Efficiency:

When combined with low-emissivity coatings(to become Low-E toughened glass) and other energy-efficient technologies, toughened glass can contribute to overall energy savings in buildings, helping to reduce heating and cooling costs.

6. Resistance to Environmental Factors:

This type of toughened glass is highly resistant to environmental factors such as UV rays, making it less prone to fading when used in windows, doors, balcony. Additionally, it can withstand exposure to moisture without warping or degrading.



Where Toughened Glass Products Are Applied:



The applications of toughened glass products are numerous and diverse, fitting seamlessly into both aesthetic and practical designs:



Architectural Uses:

Toughened glass is frequently used in modern architecture for facades, skylights, and curtain walls due to its strength, clarity, and ability to provide natural light.



Bathroom Fixtures:

Toughened Glass is the preferred choice for shower enclosures and bathroom screens, where safety and a sleek appearance are essential.



Furniture Production:

Toughened glass is often employed in tables and shelving units, combining beauty with durability and ease of maintenance.







Commercial Settings:

Retail spaces, office buildings, and restaurants use toughened glass in partitions, doors, and display cases, enhancing their visual appeal while ensuring safety.



Car Windows:

Many automotive manufacturers utilize toughened glass for car side and rear windows, ensuring they meet safety standards without compromising design.



Domestic Appliances:

Toughened Glass products are also widely used in home and kitchen appliances, like the refrigerator glass shelf, fridge door glass, household washing machine door glass, oven glass, stove or cooktop top glass, dishwasher door glass,etc. toughened glass is safe, easy to clean and has a longer service life.









About Huide Glass:



Huide Glass has been in that processing business of tempered glass sheets products for around 13 Years since 2011. We have strong production and development capabilities, and currently has 7 automatic cutting machines, 8 edge grinding lines, there are 8 CNC precision grinding processing centers; there are 3 tempering furnaces(one for North-Glass, one for Yihai, and one for continuous tempering furnace SOUTHTECH). we can fabricate tempered glass sheet products 3,000,000 square meter per year.



Our toughened glass products includes toughened glass shelf for refrigerator, toughened glass door for refrigerators, toughened glass lid for household washing machines, toughened glass sheet for smart tea table top or bedside table top, toughened glass cover panel for water cleaner and water heater, toughened glass cover for advertising billboard, toughened glass top and front door panel for tea bar machine, toughened glass door sheet for ovens, toughened glass sheet for gas stoves, toughened glass cover panel for display cabinet, display box, or toughened glass cover sheet for showcase counter,etc, and also we can do customized manufacturing according to your unique real applications. if you want to know more, don't hesitate to contact us.
